Hangjelző 32 hangú, címezhető, huroktáplált, aljzatméretű izolátoros, fehér

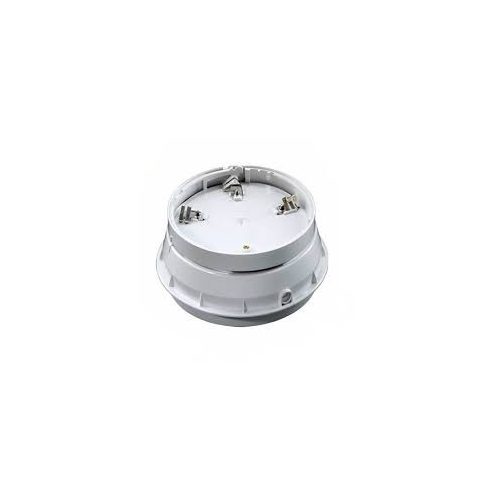

The addressable sounder is integrated in a round white plastic housing. The sounder is actuated and powered
via the loop with System Sensor protocol. The unit is designed to be inserted into a standard detector
base B501AP and is suitable for indoor surface mounting. The integrated base can accommodate fire detectors
Series 200-Advanced and 200.
With a Fire Detection Control Panel Series BC600, tone type and sound level of the sounder are controlled
via the loop protocol. Depending on the parameter setup of the control panel and the system condition, the
sounder can be activated with up to 32 different tones and selectable sound level. If several sounders are
actuated in parallel, they are synchronised by the control panel to generate a uniform warning tone.
With Fire Detection Control Panels Series BC216, a pair of tone types and the sound level can be set via a
DIL switch.
A dual-isolator is integrated in the sounder. At short circuit, it maintains the function of loop elements that
are not affected by the short circuit.
